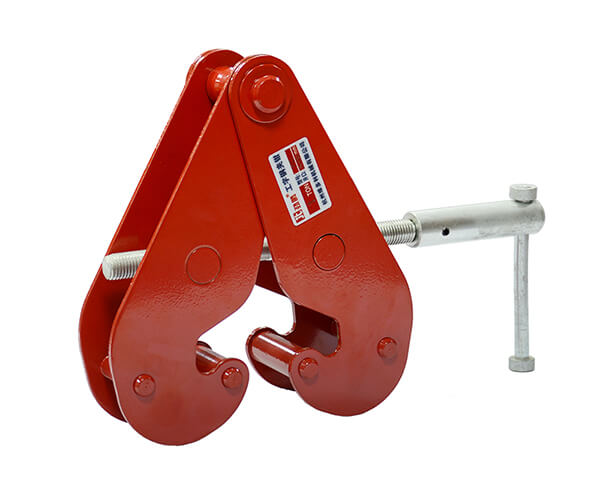

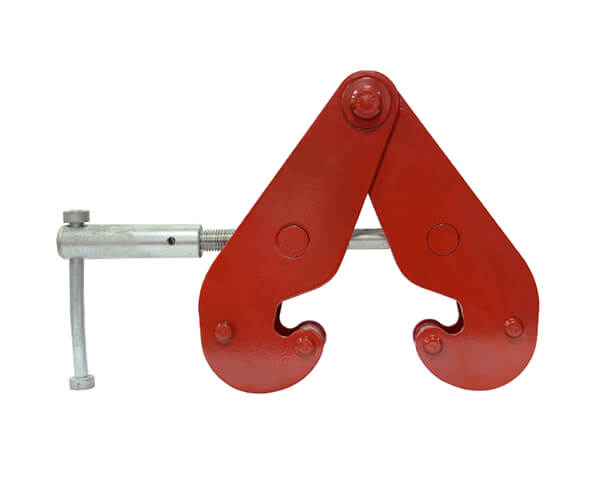

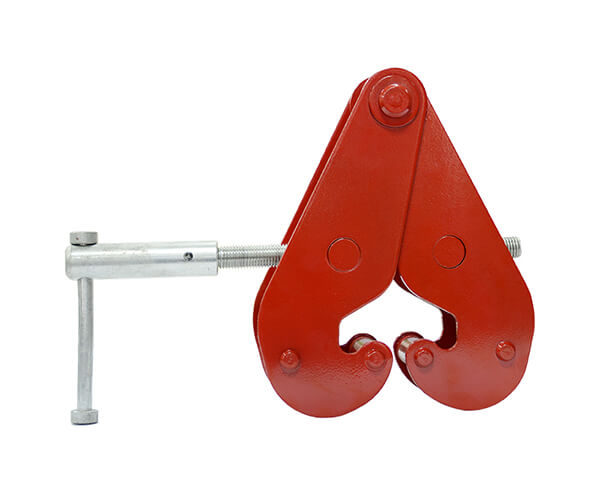

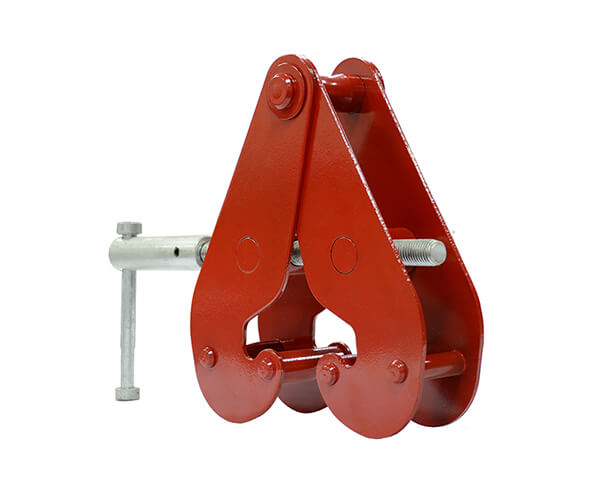

LJ-Q鋼板夾持器
Unversal Beam Clamp
·Conforms to ANSI/ASME safety standard
·Can be easily adjusted with threaded handle
·Clamp jaw is designed to reduce flange stress by distributing load away from I-Beam flange edge
·Fits a wide range of flange width and beams
·Suspension bar provides lower headroom
OPTIONAL EXTRA
·Can be supplied with shackle
·Special design with flatened，reinforced jaws
*1-ton to 10-ton capacities.
* For construction,commercial and industrial vertical or horizontal rigging operations.
* Mount hoists or lift beams with portable lightweight clamp.
* Adjusts with ease to fit a broad range of wide-flange H or standard I beams.
* Clamp jaw designed to distribute the load away from beam flange edge.
* Low headroom with built-in suspension rod.
* Robust all-steel construction with safety operation. Compact size with light,easy to install with minimum headroom,super-quick adjustment to any girder width in range.
LJ-Q TYPE GIRDER CLAMP
| 規(guī)格 Model | 1t | 2t | 3t | 5t | 10t | ||
| 額定載重量 | 1 | 2 | 3 | 5 | 10 | ||
|
Rated capacity t |
|||||||
| 實驗載荷 | 12.5 | 25 | 37.5 | 63 | 125 | ||
|
Test load kN |
|||||||
| 使用軌寬 | 75-230 | 75-230 | 80-345 | 80-345 | 90-350 | ||
|
Adjustable Beam Width mm |
|||||||
|

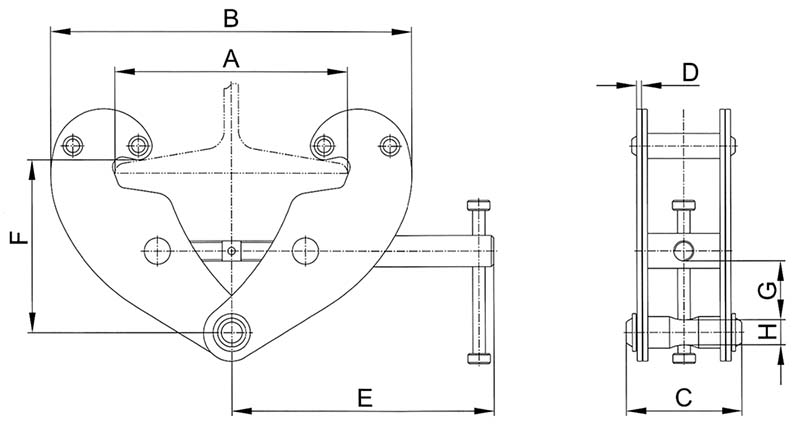

主要尺寸 mm Dimensions |
Amax | 240 | 240 | 355 | 355 | 360 | |
| B | min | 192 | 192 | 243 | 243 | 272 | |
| max | 367 | 367 | 520 | 520 | 532 | ||
| C | 94 | 102 | 132 | 142 | 180 | ||
| D | 4 | 6 | 8 | 10 | 12 | ||
| E | 194 | 194 | 241 | 241 | 284 | ||
| F | min | 102 | 102 | 133 | 133 | 155 | |
| max | 154 | 154 | 223 | 223 | 234 | ||
| G | 22 | 22 | 38 | 35 | 47 | ||
| H | 20 | 20 | 22 | 28 | 38 | ||
|
凈重 Netweight kg |
4 | 4.8 | 9.8 | 11.6 | 17 | ||
