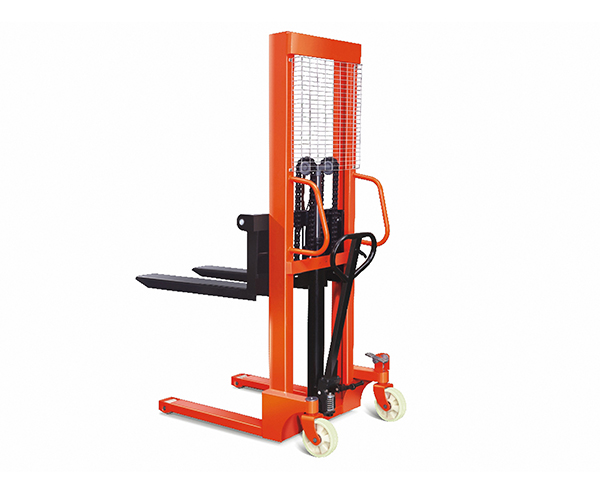

CTY-E手動液壓升高車
Hand Stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production aeras.Easy maintenance and low running costs.◆Rebust steel profile construction.
◆Sturdy and compact enough to fit through standard door and to operate in congested areas.

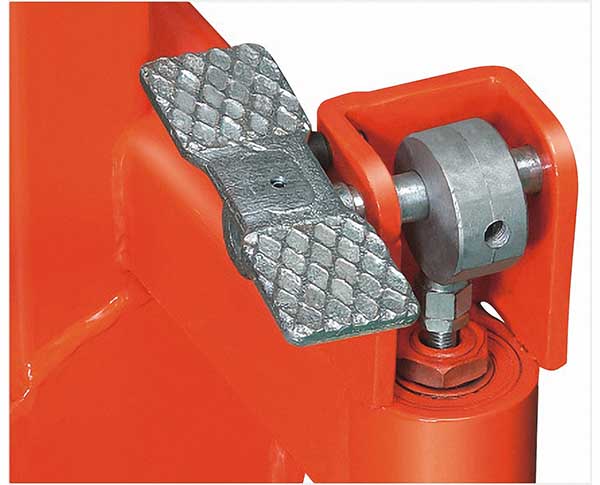

◆lifting function operated by foot and hand controls.
◆Allow the operator to work without having to perform extreme body movements

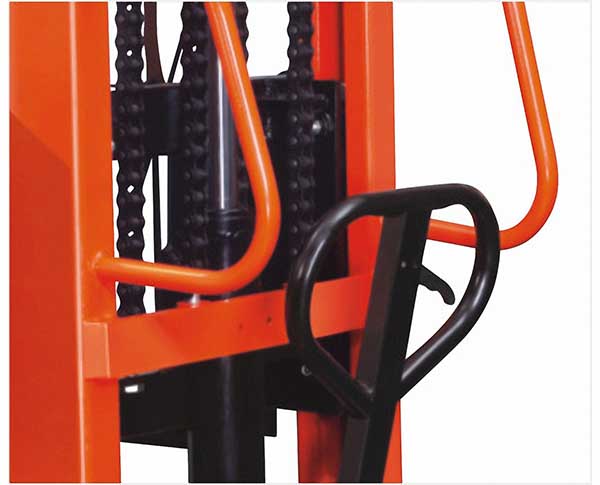

Comfortable handle to ensure easy pulling with long tiller.
Safe parking in any situation.
Heavy duty C-shaped steel construction for strength and rigidity
What type of stacker do I need？

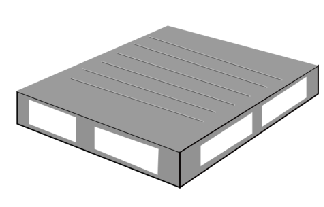

open pallet（without bottom boards）
What type of stacker do I need？
open pallet（without bottom boards）
There are 2 teype，The first type has forks that wrap over the legs of the stacker.Both the fork and legs are then inserted under the pallet.Wrapover stackers can only be used with open pallets.
The second type have straddle legs that fit around the pallet，The forks are positioned between the legs（the fork width is usually adjustable）this type of stacker can be used with both open and closed pallets.
| Model | CTY-E1.0 | CTY-E2.0 |
| Rated lifting capacity(kg) | 1000 | 2000 |
| Max. lifting height(mm) | 1600 | 1600 |
| Lowered height of forks(mm) | 85 | 85 |
| Fork length(mm) | 900 | 900 |
| Adjustable width of forks(mm) | 320-740 | 360-740 |
| Lifting speed(mm/stroke) | 20 | 14 |
| Lowering speed(mm/stroke) | Controllable | Controllable |
| Operation power of hand crank(kg) | 24 | 32 |
| Outer width of front legs(mm) | 690 | 690 |
| Min. refuel volume for fuel tank(L) | 1.5 | 2.0 |
| Front wheel size(mm) | φ75x52 | φ75x70 |
| Rear wheel size(mm) | φ180x50 | φ180x50 |
| Overall size(mm) | 2030x780x1450 | 2040x780x1470 |
| Self weight(mm) | 150 | 250 |
