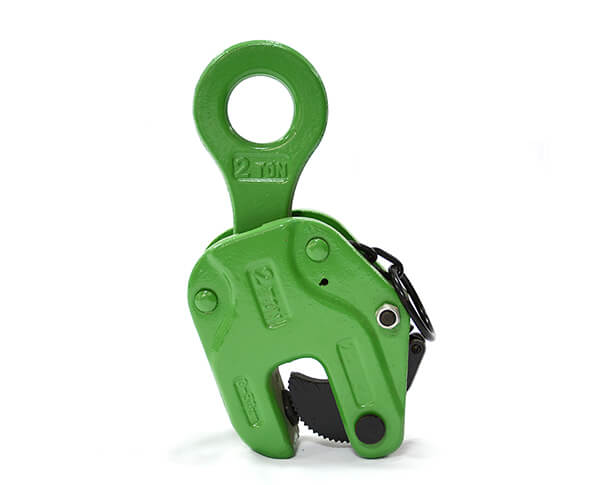

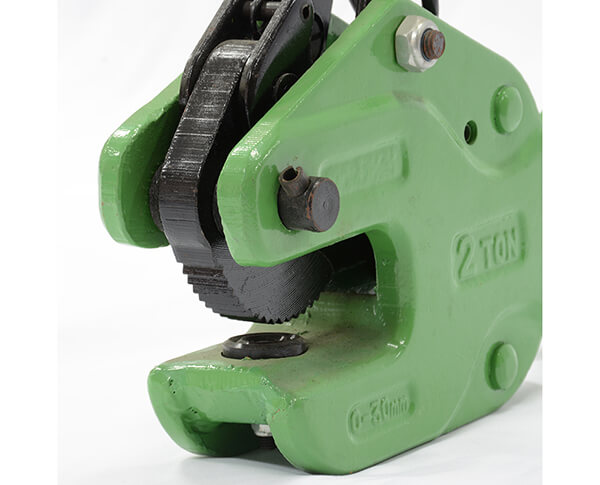

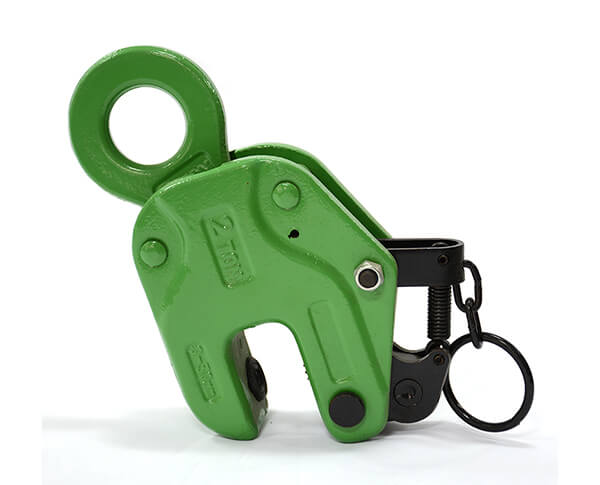

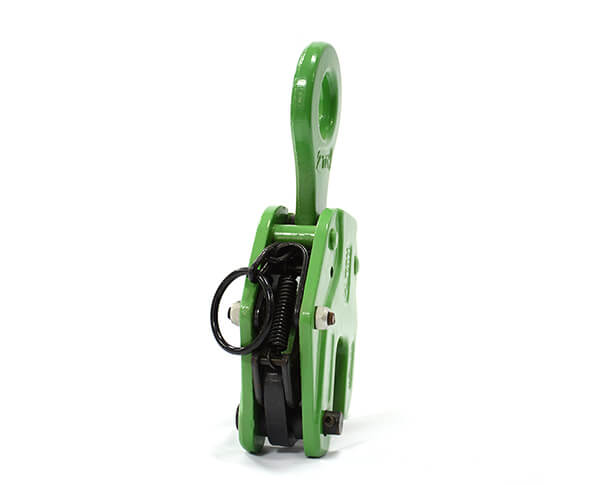

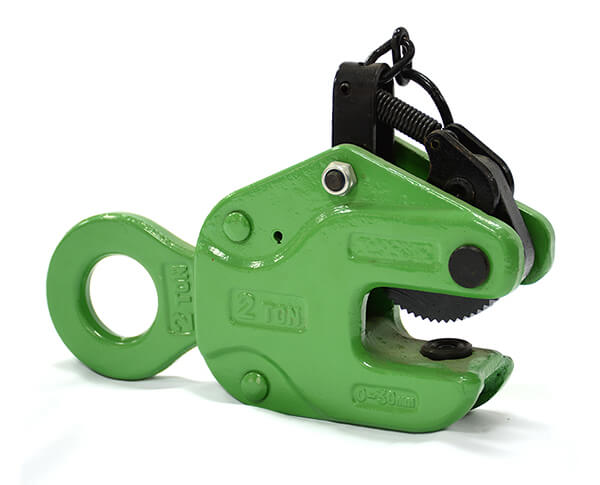

LC-V1豎吊
* Suitable for lifting steel plates and structure steels in vertical position.* It is manufactured by low-carbon hi-quality alloy steel forging.
* Always must be used in pairs.
* Each plate grip is subject to test load at 2X rated load capacity.
* Don't overload to use.
* Please read owner's manual before using the clamp.

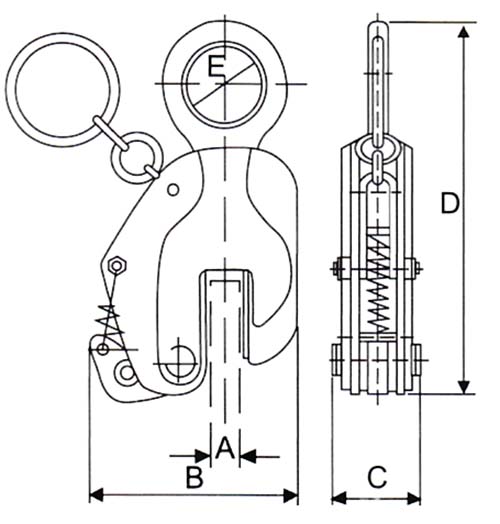

| 參數(shù)表 LC-V1 TYPE LIFTING CLAMP | ||||
| 型號 | 額定載荷 | 實驗載荷 | 鉗口寬度 | 凈重 |
| Model | Rated Capacity(t) | Test Load(t) | Jaw opening(mm) | N.W(Kg) |
| 1T | 1 | 2 | 0-22 | 4.5 |
| 2T | 2 | 4 | 0-32 | 6.8 |
| 3T | 3 | 6 | 0-36 | 11 |
| 5T | 5 | 10 | 0-50 | 17.2 |
