PLM永磁磁力吊
1.Double magnetic circuit lifters.
2.Strong magnetic path by NdFeb magnetic materials.
3.Higher magnetism，less weight
4.Less remaining magnetism when being off.
5.New designed handle enable its damper strength lower.
6.Suitable for thin magnetic-inductive material with thickness over 5mm.
| Permanent Magnet lifter | |||||||||
| TC Model safety factor 3.5:1 | |||||||||

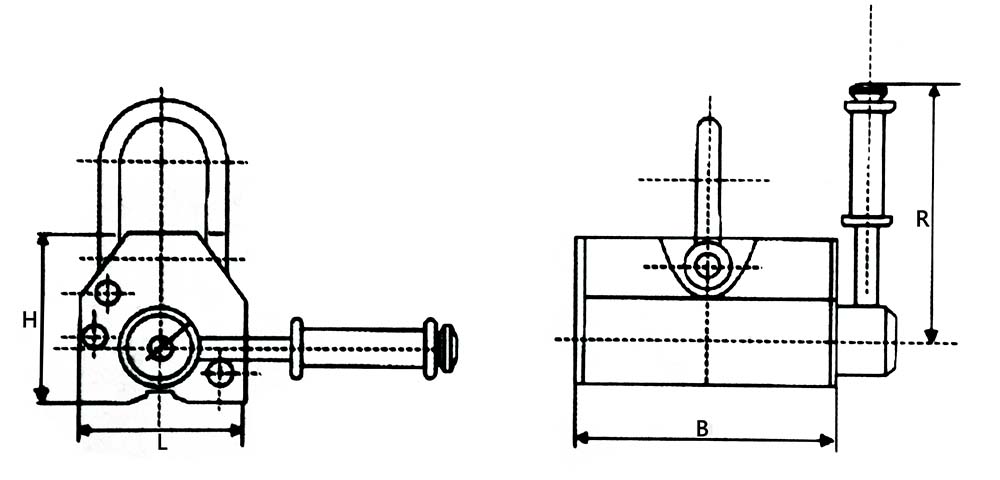

| Model | Rated Lifting | Cylindrical Lifting | Max pull-off | L | B | H | R | Operation | Net Weight |
| Strength | Strength | Strength | temperature | ||||||
| kgf | kgf | kgf | （℃） | Kg | |||||
| TC100 | 100 | 50 | 350 | 62 | 92 | 67 | 140 | <80 | 3 |
| TC300 | 300 | 150 | 1050 | 92 | 163 | 93 | 180 | <80 | 10 |
| TC500 | 500 | 250 | 1750 | 120 | 216 | 116 | 220 | <80 | 21 |
| TC600 | 600 | 300 | 2100 | 122 | 234 | 118 | 220 | <80 | 24 |
| TC1000 | 1000 | 500 | 3500 | 172 | 264 | 168 | 260 | <80 | 50 |
| TC2000 | 2000 | 1000 | 7000 | 232 | 370 | 221 | 450 | <80 | 125 |
| TC3000 | 3000 | 1500 | 10500 | 274 | 453 | 266 | 520 | <80 | 200 |
| TC5000 | 5000 | 2500 | 17500 | 296 | 720 | 266 | 700 | <80 | 298 |
