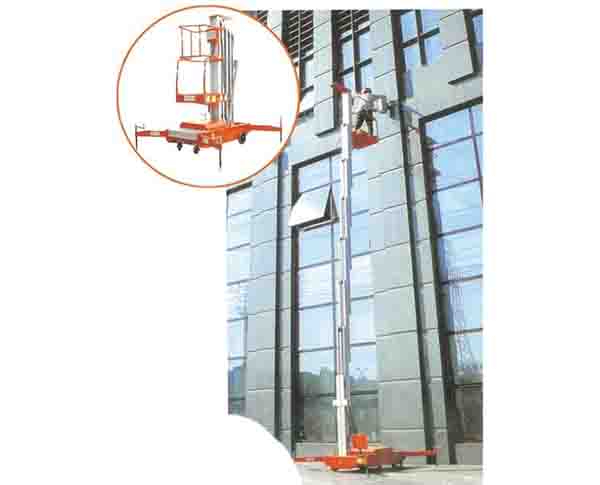

GTWY 單軌升降平臺
| Mobile Aluminium Work Platform（Single Mast） | |||||
|
型號規格 Model Number |
AWP6-1000 | AWP8-1000 | AWP10-1000 | ||
|
平臺最大高度 Max.Platform Height |
mm | 6000 | 8000 | 10000 | |
|
工作高度 Working Height |
mm | 7700 | 9700 | 11700 | |
|
底座離地距離 Ground Clearance |
mm | 80 | |||
|
平臺額定載荷 Lift Rated Capacity |
kg | 150 | 125 | ||
|
工作平臺尺寸 Platform Size |
mm | 650×600 | |||
|
撐腿展開尺寸 Outspread Size |
mm | 1930×1770 | |||
|
電源 Electrical Source |
交流AC | V | 220 | ||
| 直流DC | V | 24 | |||
|
免維護電池 Aneroid Battery |
v/Ah | 2×12/60 | |||
|
充電器 Charger |
v/A | 24/10 | |||
|
舉升電機 Lifting Motor |
交流AC | v/kw | 220/0.75 | ||
| 直流DC | v/kw | 24/2.0 | |||
|
整機長度 Overall Length |
mm | 1330 | |||
|
整機寬度 Overall Width |
mm | 800 | |||
|
整機高度 Overall Height |
mm | 1950 | 2050 | 2150 | |
|
整機重量 Overall Net Weight |
交流AC | kg | 300 | 350 | 400 |
| 直流DC | kg | 330 | 380 | 430 | |
