G100 Welded Master Link with Flat（TH-1013）

Green painted.other colour is available as per request.

Working load limit permanently shown on the body.

Max proof load is 2.5 times of the working load limited.

Min.Breaking strength is 4 times of the W.L.L.

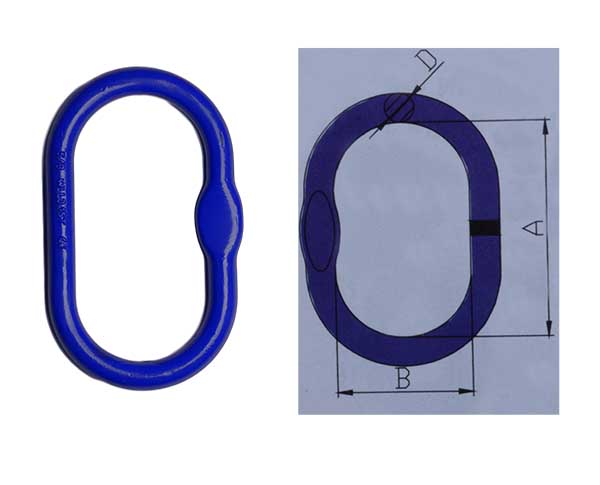

Size W.L.L B.L Dimension（mm） Weight
(t) (t) A B D kg/pc
8/6-10 2.5 10 120 70 14 0.4
10/8-10 4 16 140 80 17 0.7
13/10-10 7.5 30 160 95 22 1.5
16/13-10 10 40 190 110 25 2.2
20/16-10 17 68 240 140 34 5.1
22/20-10 25 100 250 150 38 7.2
