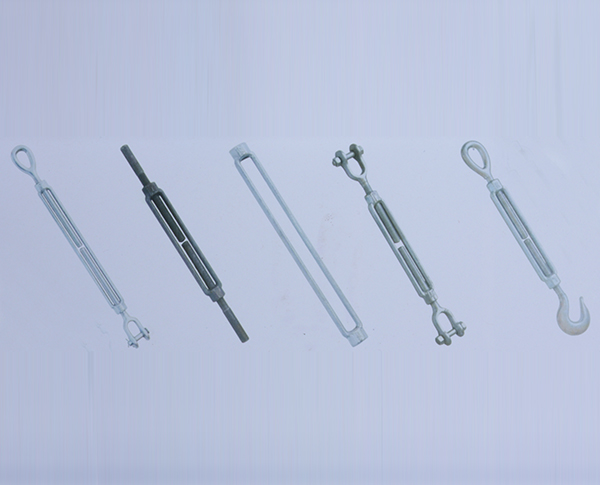

JTR-TE05 U.S.TYPE DROP FORGED TURNBUCKLE
| JS039 | ||||||||
| U.S.TYPE DROP FORGED TURNBUCKLE | ||||||||
| Size （Diameter×take-up） | Acerage Ocerall Ends in Closed Position | Approx.Weight Each（lbs） | Work Load Limit Pounda | |||||
| Eyes and/or hooks | Jaw&Eye | Jaw&Jaw |
Stub End |
Bodies only |
Hook&hook hook&eye |
Eye&eye Jaw&eye Jaw&jaw Stub end |
||
| 1/4"×4" | 81/4 | 3 | 3 | 4 | 29 | 17 | 400 | 500 |
| 5/16"×41/2" | 99/16 | 5 | 35 | 58 | 46 | 25 | 700 | 800 |
| 3/8"×6" | 11 7/8 | 75 | 82 | 93 | 75 | 3 | 1000 | 1200 |
| 1/2"×6" | 13 5/16 | 1.5 | 1.62 | 1.68 | 1.36 | 55 | 1500 | 2200 |
| 1/2"×9" | 16 5/16 | 1.75 | 1.82 | 1.85 | 1.69 | 74 | 1500 | 2200 |
| 1/2"×12" | 19 5/16 | 2.18 | 2.19 | 2.2 | 2 | 93 | 2250 | 2200 |
| 5/8"×6" | 15 1/2 | 2.63 | 2.59 | 2.82 | 2.15 | 91 | 2250 | 3500 |
| 5/8"×9" | 18 1/2 | 3 | 3.01 | 3.25 | 2.7 | 1.2 | 3000 | 3500 |
| 5/8"×12" | 21 1/2 | 3.25 | 3.5 | 3.75 | 3.22 | 1.5 | 2250 | 3500 |
| 3/4"×6" | 17 | 3.75 | 4.25 | 4.68 | 3.25 | 1.3 | 3000 | 5200 |
| 3/4"×9" | 20 | 4.5 | 5 | 5.38 | 4 | 1.7 | 3000 | 5200 |
| 3/4"×12" | 23 | 5.75 | 5.75 | 6.12 | 4.65 | 2.12 | 3000 | 5200 |
| 3/4"×18" | 29 | 7 | 7.25 | 7.25 | 6.12 | 2.93 | 3000 | 5200 |
| 7/8"×6" | 18 | - | - | - | 4.75 | 2 | - | 7200 |
| 7/8"×12" | 24 5/8 | 8.38 | 8.88 | 9.36 | 6.67 | 3 | 4000 | 7200 |
| 7/8"×18" | 30 5/8 | 10.25 | 10.6 | 11.44 | 8.75 | 4.12 | 4000 | 7200 |
| 1"×6" | 20 5/8 | - | - | - | 6.41 | 2.5 | - | 10000 |
| 1"×12" | 26 5/8 | 11.25 | 12 | 12.88 | 8.9 | 3.86 | 5000 | 10000 |
| 1"×18" | 32 5/8 | 14 | 14.75 | 16.1 | 11.7 | 5.5 | 5000 | 10000 |
| 1"×24" | 38 5/8 | 17 | 17.75 | 18.6 | 14.3 | 7 | 5000 | 15200 |
| 11/4"×6" | 20 | - | - | - | 10.4 | 4 | - | 15200 |
| 11/4"×12" | 29 7/8 | 19 | 21.2 | 23.6 | 14.2 | 5.93 | - | 15200 |
| 11/4"×18" | 35 7/8 | 24.1 | 26 | 26.6 | 18 | 8 | - | 15200 |
| 11/4"×24" | 41 7/8 | 25 | 28.7 | 31.2 | 21.8 | 10 | - | 21400 |
| 11/2"×6" | 22 1/2 | - | - | - | 15.4 | 5.8 | - | 21400 |
| 11/2"×12" | 32 3/8 | 27 | 31.1 | 35.5 | 20.5 | 8.4 | - | 21400 |
| 11/2"×18" | 38 3/8 | 31.2 | 36.4 | 40.7 | 26.2 | 11.5 | - | 21400 |
| 11/2"×24" | 44 3/8 | 38.2 | 44.2 | 47.6 | 31.4 | 14.1 | - | 28000 |
| 13/4"×6" | - | - | - | - | 22.7 | 8.75 | - | 28000 |
| 13/4"×18" | 41 3/4 | 45 | 48.8 | 52.4 | - | - | - | 28000 |
| 13/4"×24" | 47 3/4 | 58 | 60 | 64 | 43.9 | 19.5 | - | 37000 |
| 2"×6" | - | - | - | - | 31.5 | 12.5 | - | 37000 |
| 2"×24" | 51 3/4 | 90 | 102 | 115 | 60.3 | 27.5 | - | 37000 |
| 21/2"×6" | - | - | - | - | 60.8 | 27 | - | 60000 |
| 21/2"×24" | 58 1/2 | 183 | 180 | 200 | 110 | 54 | - | 60000 |
| 23/4"×24" | 61 1/2 | 180 | 214 | 248 | - | 54 | - | 75000 |
