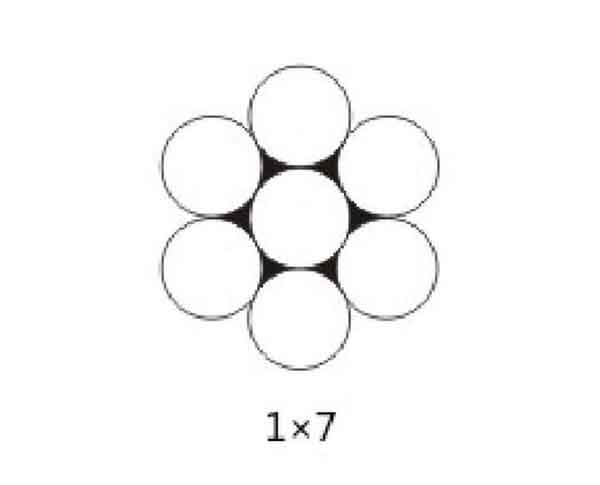

| Specification：DIN3052 1×7 | |||
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | |
| Minimum Breaking strength(KN) | |||
| mm | kg/100m | 1570N/mm2 | 1770N/mm2 |
| 0.6 | 0.18 | 0.308 | 0.347 |
| 0.8 | 0.32 | 0.547 | 0.617 |
| 1 | 0.5 | 0.855 | 0.963 |
| 1.5 | 1.13 | 1.92 | 2.17 |
| 2 | 2.01 | 3.42 | 3.85 |
| 2.5 | 3.14 | 5.34 | 6.02 |
| 3 | 4.52 | 7.69 | 6.67 |
| 3.5 | 6.15 | 10.5 | 11.8 |
| 4 | 8.03 | 13.7 | 15.4 |
| 4.5 | 10.2 | 17.3 | 19.5 |
| 5 | 12.6 | 21.4 | - |
| 6 | 18.1 | 30.8 | - |
| 7 | 24.6 | 41.9 | - |
| 8 | 32.1 | 54.7 | - |
