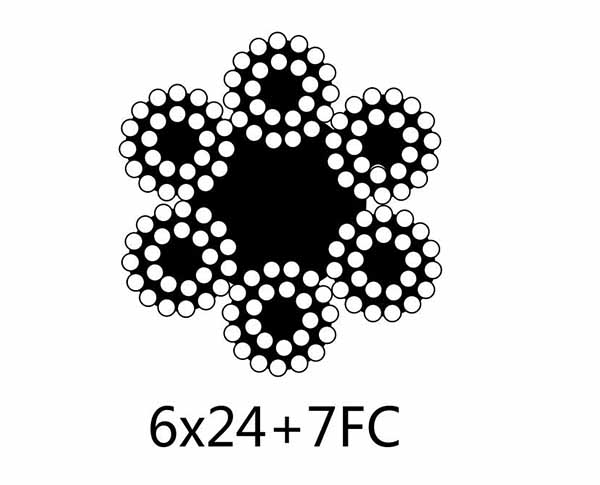

| Specification：DIN3068， 6×24+7FC | |||
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | |
| Minimum Breaking strength(KN) | |||
| mm | kg/100m | 1570N/mm2 | 1770N/mm2 |
| 6 | 11.45 | - | 17.9 |
| 7 | 15.6 | - | 24.3 |
| 8 | 20.4 | 28.2 | 31.8 |
| 9 | 25.8 | 35.6 | 40.1 |
| 10 | 31.8 | 44 | 49.6 |
| 11 | 38.5 | 53.2 | - |
| 12 | 45.8 | 633 | - |
| 13 | 53.8 | 74.3 | - |
| 14 | 62.4 | 86.2 | - |
| 16 | 81.5 | 113 | - |
| 18 | 103 | 143 | - |
| 20 | 127 | 176 | - |
| 22 | 154 | 213 | - |
| 24 | 183 | 253 | - |
| 26 | 215 | 297 | - |
