JTHH環(huán)鏈電動(dòng)葫蘆

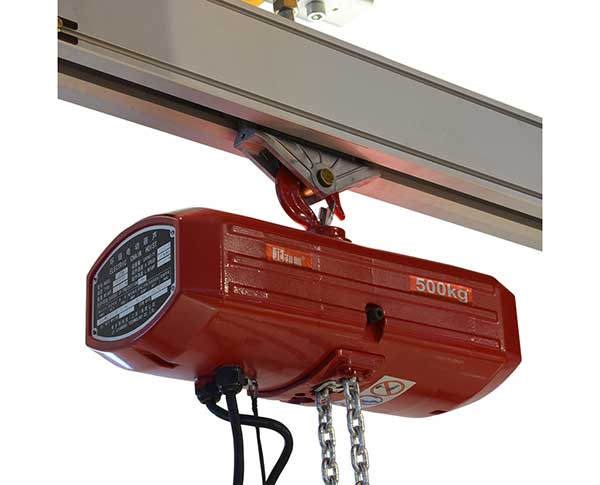

JTHH 3 Phase Electric Chain Hoist
Jentan Code		W.L.L(t)	Chain Falls	Lifting Speed (m/min)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	Dimensions(mm)
Jentan Code		W.L.L(t)	Chain Falls	Lifting Speed (m/min)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	A	B	C	D	E	F	G	H	L	K	M	N
Single Speed	JTHH1J1-0.125A	0.125	1	16	0.4	40	5X15	30	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH1F1-0.25A	0.25	1	8	0.4		5X15	30	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH1F1-0.5A	0.5	1	8	0.9		6.3X19	35	0.88	455	458	229	165	124	235	92	168	40	45	27	30
	JTHH1C2-0.5A	0.5	2	4	0.4		5X15	35	1.3	515	428	229	165	103	235	92	168	40	45	27	30
	JTHH1E1-1B	1	1	6.3	1.6		8X24	56	1.42	545	493	294	193	171	247	114	197	45	49	31	36
	JTHH1C2-1A	1	2	4	0.9		6.3X19	42	1.9	540	458	229	165	103	235	92	177	45	49	31	36
	JTHH1B2-2B	2	2	3.2	1.6		8X24	67	3	665	493	294	193	140	247	122	226	55	64	39	42
Dual Speed	JTHH2J1-0.125A	0.125	1	5.3/16	0.13/0.4	20/40	5x15	33	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH2F1-0.25A	0.25	1	2.7/8	0.13/0.4		5x15	33	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH2F1-0.5A	0.5	1	2.7/8	0.3/0.9		6.3x19	38	0.88	455	458	229	165	124	235	92	168	40	45	27	30
	JTHH2C2-0.5A	0.5	2	1.3/4	0.13/0.4		5x15	38	1.3	515	428	229	165	103	235	92	168	40	45	27	30
	JTHH2E1-1B	1	1	2.1/6.3	0.53/1.6		8x24	59	1.42	545	493	294	193	171	247	114	197	45	49	31	36
	JTHH2C2-1A	1	2	1.3/4	0.3/0.9		6.3x19	45	1.9	540	458	229	165	103	235	92	177	45	49	31	36
	JTHH2B2-2B	2	2	1.1/3.2	0.53/1.6		8x24	70	3	665	493	294	193	140	247	122	226	55	64	39	42
