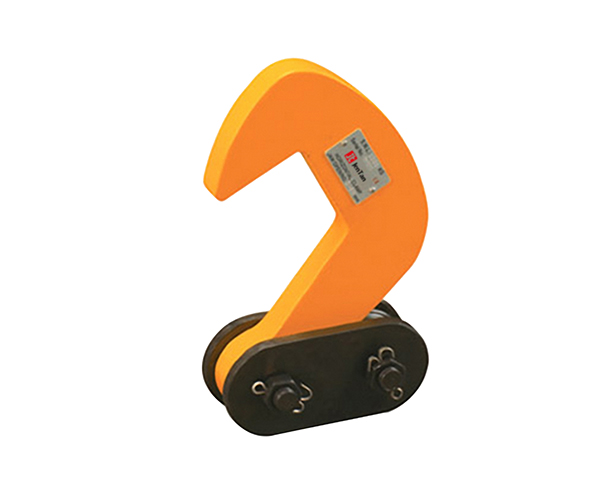

LC-H5橫吊

1.Suitable for lifting and transport of multi steel plates.

2.Manufacturd from high quality carbon steel.

3.Avoid snatch or shock loading.Lifting beam must be in use.

4.The roller at the head of the hook will not damage the sling rope.

5.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations four clamps must at least always be used.

6.Automatic unloading
參數(shù)表 LC-H5 TYPE LIFTING CLAMP
型號(hào) 額定載荷 鉗口寬度 凈重
Model Rated Capacity(t) Jaw opening(mm) N.W(Kg)
1T 1.0 0-50 3
2T 2.0 0-60 5
3.2T 3.2 0-90 12
5T 5.0 0-120 17
8T 8.0 0-130 25
10T 10.0 0-150 30
20T 20.0 0-160/0-240
